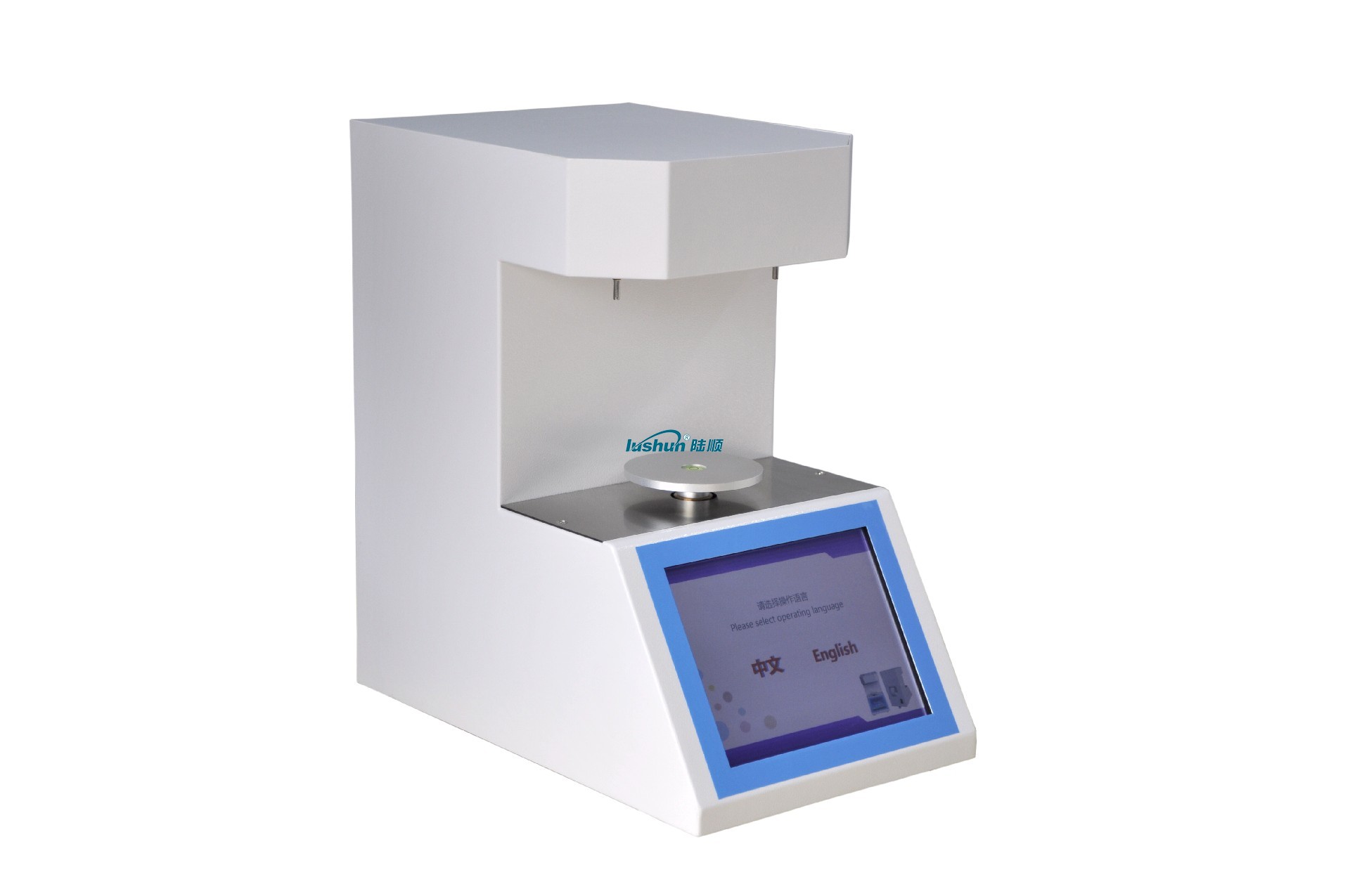

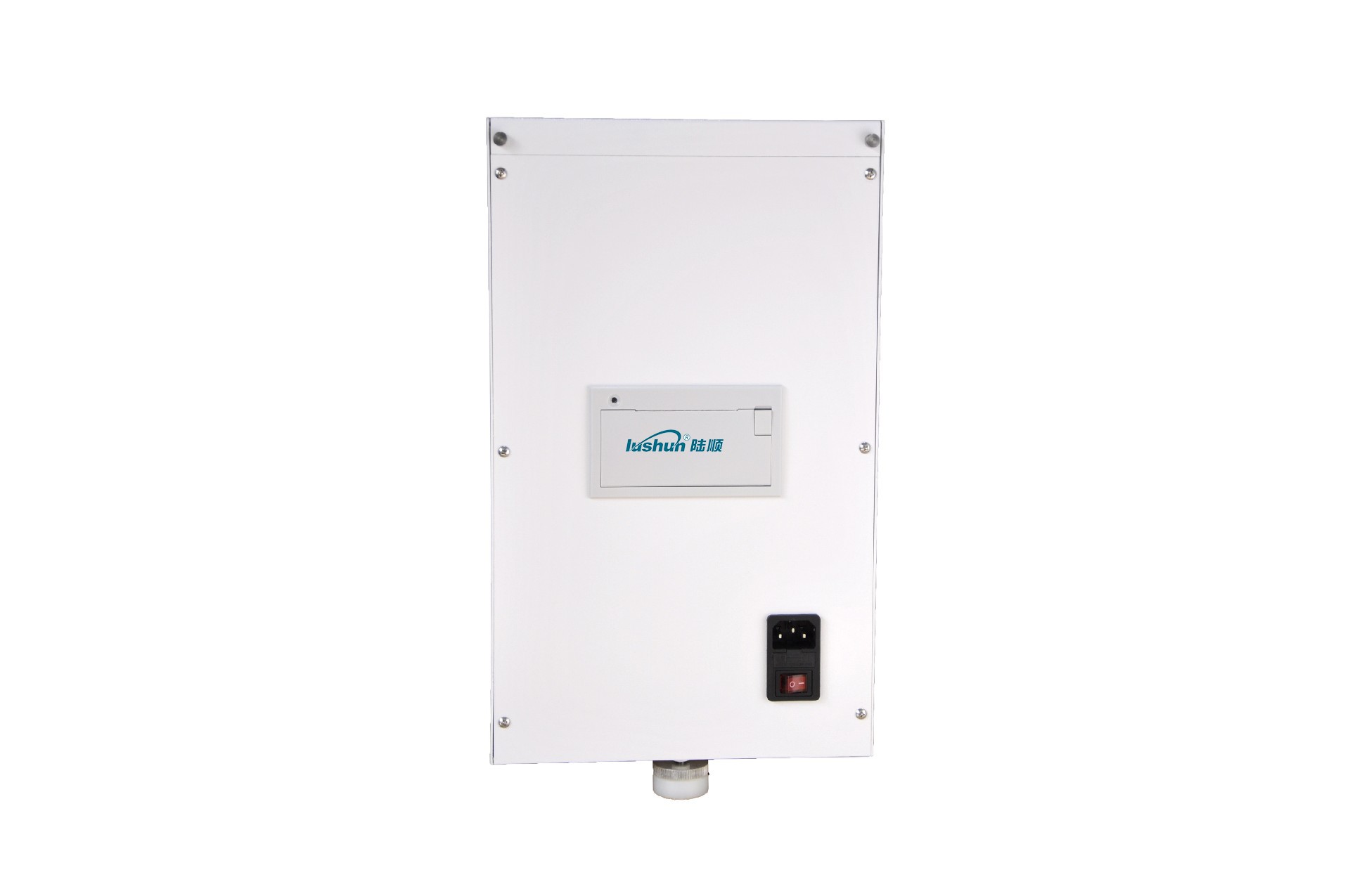

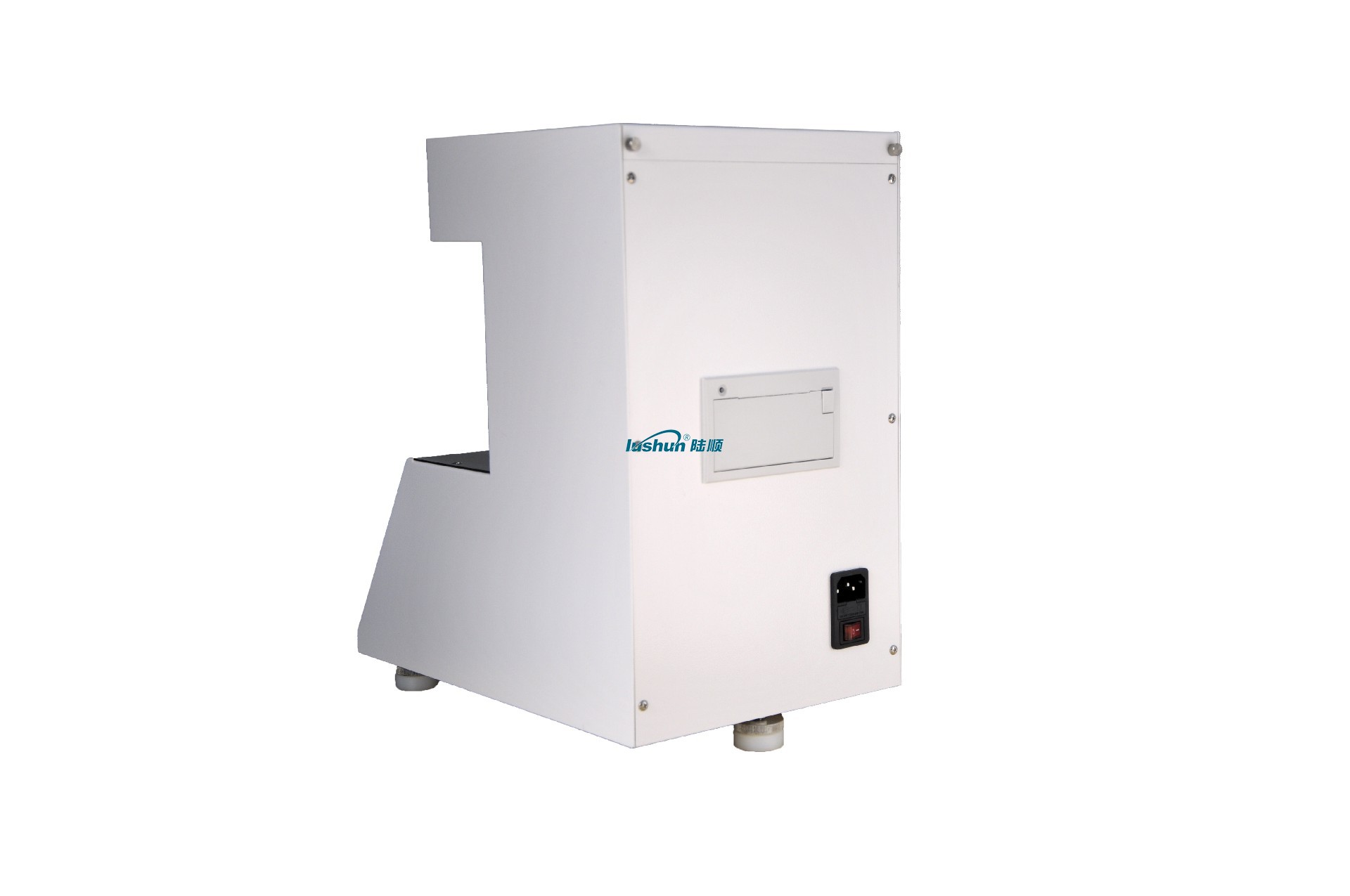

Overview
The fully automatic oil interface tension meter should be used by qualified personnel. Before using this product, please carefully read the product manual, understand the content, understand the technical parameters, performance, and operation methods of the equipment itself, and strictly follow the relevant standards of electrical high voltage testing and electrical work regulations for operation. Please place this user manual in an easily accessible location for future reference and use. The use of DH301 also requires compliance with local requirements for the use of such equipment (if any), as well as relevant testing requirements, standards, regulations, etc., and the use of this product is subject to compliance with local requirements for electrical operations.
Functional Features
This instrument adopts a Wen bridge sine wave oscillator composed of high-precision and high-speed operational amplifiers, which has the characteristics of low distortion and easy debugging. Under non-equilibrium conditions, measuring the interfacial tension of various liquid gas and liquid-liquid phases is easy to operate, stable and reliable, and automatically calculates the tension value. It can be used for measuring the interfacial tension of products such as petroleum, chemical, power, pharmaceutical liquids, etc.
The instrument adopts a newly improved magnetic can enclosed electromagnetic force balance sensor, which improves the response speed and linearity; The new sensor only needs to be calibrated at one point, solving the problem of the previous generation of sensors requiring multi-point calibration to ensure linearity and accuracy.
The internal microprocessor of the instrument can also perform bidirectional compensation based on the working temperature, with a reference temperature of 25 ℃, and the compensation range can meet the environmental temperature of all laboratories.
Technical Parameter
1. Measurement principle: Platinum ring method
2. Measurement range: 5-100 millinewtons per meter
3. Sensitivity: 0.1 millinewtons per meter
4. Accuracy: ± 0.1 millinewtons per meter
5. Resolution: 0.1 millinewtons per meter
6. Applicable temperature: 10-40 ℃
7. Applicable humidity: (20-75)% RH
8. Power supply: AC 220V ± 5% 50Hz
9. Power: 20W
10. Dimensions: 185 × 260 × 360 (millimeters)
11. Weight: Approximately 15 kilograms
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
