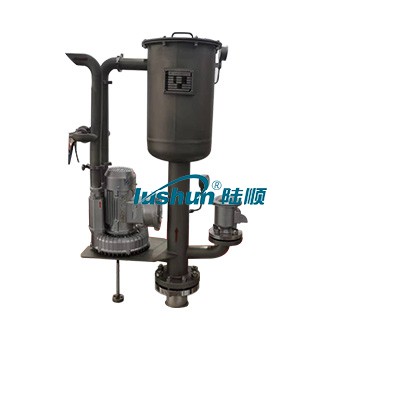

OMB/OMC/OME series
lushun
EFFICIENT OIL MIST SEPARATOR INTRODUCTION
Efficient oil mist separator solutions
Chongqing Lushun OMB/OMC/OME series efficient oil mist separator sets two functions of filtration and efficient separation in one, the core adopts "coalescing separation" technology to remove oil mist in oil smoke.
Rule for Coalescing
The high efficiency coalescence separation filter is composed of a variety of materials with different characteristics. At present, the coalescing separation materials used are all German products, which can ensure the use effect. Different materials have different filter voids, surface tension characteristics and oleophilic/hydrophilic and oleophobic/hydrophobic polarity. Through the combination of different materials, three purposes of filtration, coalescing and separation can be achieved, so as to ensure the final separation effect.
Filtering
In addition to the oil smoke, the oil mist also contains various solid particles. The existence of solid particles will affect the effect of coalescence separation and greatly reduce the service life of the filter element. We design efficient deep filtration before the coalescence separation layer, and the flue gas can pass through the coalescence separation filter core after deep filtration, thus greatly improving the life of the filter core.
Coalescing
Coalescence is performed according to the surface tension of the medium. The coalescence layer is composed of three to four kinds of materials wrapped in multiple layers. Through the specially designed gas channel structure, the structural change of flue gas from small oil vapor to large oil droplets is realized. With large flow capacity and strong coalescing capacity, the filter can be used in the harsh environment of saturated oil mist for a long time, and has the advantages that traditional methods such as sintering method and felting method cannot match.
Separating
The flue gas passing through the coalescing filter will enter the separation layer of the filter. The large oil droplets move forward driven by the gas, collide with the separation layer due to the oleophilic/oleophobic polarity, and finally sink to the bottom of the container due to gravity.
Discharging
The oil separated from the oil fume fan is very clean and can be used directly back. According to the design requirements of the P&ID system diagram of the API614 oil station, Lushun oil mist separator is specially reserved for oil discharge pipelines, and the pipelines are deep below the minimum liquid level.
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
