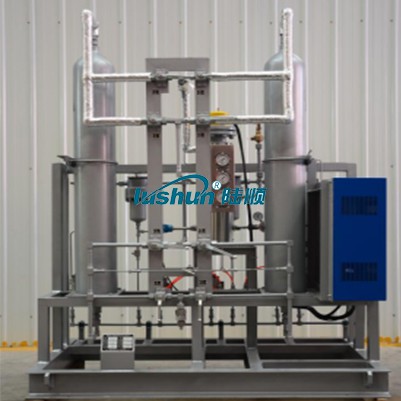

ADSORPTION DRYER
The adsorption dryers produced by our company are divided into micro-thermal regeneration dryers (LS-GZ series) and non-thermal regeneration dryers (LS-WUGZ series), which are deep dehydrating and multistage filtration purification treatment of compressed high-pressure gas. The control forms are divided into manual control, semi-automatic control and automatic control. The semi-automatic type only needs to manually switch the tower, adopts automatic control of temperature and pressure, and regenerates the adsorbent. The main valve adopts two-way ball valve, and the failure rate is low. The automatic model adopts imported PLC+ touch screen control, which can automatically switch the reverse tower and automatically regenerate, realizing 24 hours unattended. Complete sets of equipment including A, B tower, separator, filter, oil remover, heater, pressure reducing device and pipeline system, etc., is one of the main configuration equipment of air source station, has been in chemical, aerospace, petrochemical, machinery, electronics, instrumentation and other industries, energy fields such as: Pipeline natural gas dehydration, coalbed methane dehydration, gas dehydration, well gas dehydration, methane dehydration, shale gas dehydration, coke oven gas dehydration and other application scenarios have been widely used.
LS-GZ series of high pressure air micro-thermal regeneration dryer produced by our company can handle gas volume from 1m³/ min-30m ³/min, the atmospheric pressure dew point of treated gas can reach -55℃~-60℃, the maximum particle size of dust is less than 3μm, and the inlet and outlet pressure drop is less than 0.05MPa. When the regeneration temperature is 180℃~230℃ and the oil content of the intake air is less than 10mg/Nm³, the oil content of the exhaust air can reach less than 0.1mg/Nm³. When the user's gas dew point requirements are not so strict, higher than -50℃, we can choose LS-WUGZ series high pressure heat free regeneration dryer. The control mode is selected by the user. When the atmospheric dew point of -55℃ to -60℃ is required by the temperament, the micro-thermal regeneration drying method is generally selected, and the non-thermal regeneration drying method is generally selected when the temperature is higher than -50℃.
1m³/MIN HIGH PRESSURE AIR DRYER MODEL NO
Model | Regeneration Mode | Discharge Pressure | Gas Displacement | Atmospheric Dew Point |
LS-WUGZ-1/10 |
Manual no heat | 10MPa | 1m² | -50℃ |
LS-WUGZ-1/15 | 15MPa | 1m³ | -50℃ | |
LS-WUGZ-1/25 | 25MPa | 1m³ | -50℃ | |
LS-WUGZ-1/35 | 35MPa | 1m³ | 50℃ | |
LS-WUGZ-1/40 | 40MPa | 1m³ | -50℃ | |
LS-WUGZ-1/45 | 45MPa | 1m² | -50℃ | |
LS-GZ-1/10 |
Manual heating | 10MPa | 1m² | |
LS-GZ-1/15 | 15MPa | 1m³ | -55℃--60℃ | |
LS-GZ-1/25 | 25MPa | 1m³ | -55℃--60℃ | |
LS-GZ-1/35 | 35MPa | 1m³ | -55℃--60℃ | |
LS-GZ-1/40 | 1m² | -55℃--60℃ | ||
LS-GZ-1/45 | 45MPa | 1m³ | -55℃--60℃ |
Semi-automatic control type suffix SZD after the model, fully automatic control type suffix ZD after the model.
VRP Series Varnish Removal Oil Purifier
Application
Used in gas and steam turbine, compressor, to remove dissolved and suspended soft pollutants in oil products, sludge and other harmful substances. Avoid turbine failures and expensive oil changes due to paint film problems. When the film is formed, the loss of production is very high. The initial formation of the film is known as a soft pollutant, caused by hot spots in the system, such as bearings, pumps, and high flow on-line filtration. Recent studies have found that the existence of soft pollutants can be divided into dissolved state and suspended state, by removing these soft oxides can avoid the production of paint film. Once the film forms, it will clog valves, filters and other small links, and the life of the oil will be significantly reduced.
The formation of cleaning film will cause the following adverse consequences: valve adhesion, loss of control, resulting in unit failure or startup failure; Filter plugging, limiting oil flow, resulting in oil temperature rise and wear increase; Heat exchange failure, oil temperature rise; Sandpaper surface, increase component wear; Forming paint on the bearing, limiting flow, increasing wear and temperature; Frequent oil changes and system flushes. When the soft pollutants are dissolved in the oil, typically when the oil temperature is above 40℃, they cannot be removed by ordinary mechanical filtration or electrostatic filtration, and these soft pollutants show natural magnetism. For polar absorption, the cooler metal surface "cold spot", i.e. the valve and cooler. When the temperature of the oil is lowered, the thermal stability of the soft pollutants is less than that of the oil, so they are more likely to bake hard on hot surfaces, such as axial shafts.
VRP paint film cleaner. It achieves revolutionary and efficient removal of soft pollutants (dissolved and suspended) from oil products, including gas and steam turbines and compressors under high temperature operation. The warm oil is pumped from the lowest point at the bottom of the tank to the VRP paint film purifier by the equipment's own transfer pump. After cooling treatment (using the thermal stability of the paint film is worse than that of oil), the paint film, particulate matter and moisture are removed by the filter element with wood fiber as the raw material (no need to use ion-exchange resin filter material, greatly saving the cost of use).
Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products. Features:
● Increase system reliability and stability. ● No more shutdowns and startup failures caused by paint film.
● No longer need to clean the tank and system flushing. ● Increase jacking oil pressure, more stable bearing temperature.
● Improve the life of oil products, blood additives and system components, such as bearings, valves, seals, etc.
● Great savings can be achieved by avoiding turbine failure and extending the life of oil products.
Technical Specification
|
Model |
VRP-10 |
|
Flow |
10L/min |
|
Working Pressure |
≤0.5Mpa |
|
Total Power |
5.55KW |
|
Power Supply |
AC380V/50Hz |
|
Overall Dimension |
1466mm×1126mm×1750mm |
|
Net Weight |
500kg |
|
Particle contamination degree(NAS1638)
|
≤6grade |
|
MPC data |
＜15 |
■Above size and weight of this equipment are for reference only, the specific data shall be subject to its physical object.
